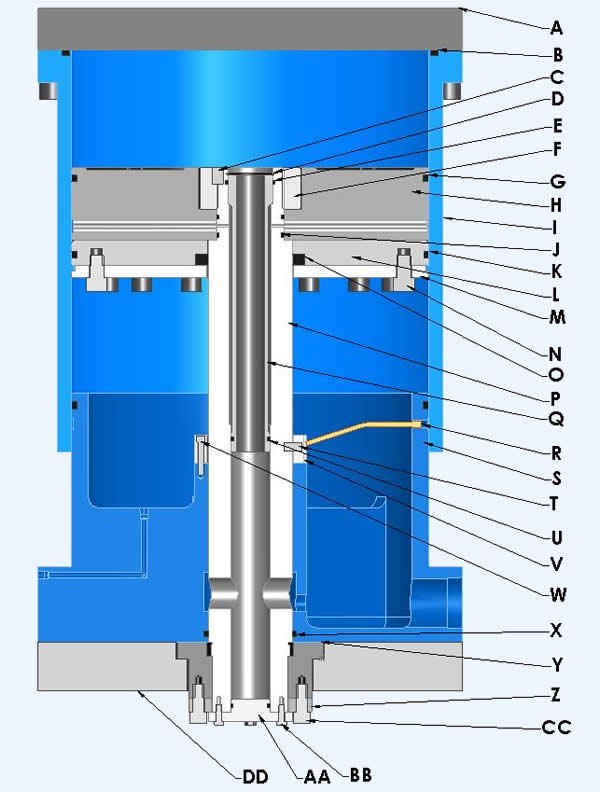

 Die Cushion Parts Lists
  >>Parts >>Parts Lists >>Model MD Parts List
Description
Cushion Diameter and Part Number
8"
10"
12"
14"
16"
PBM Pin Pad
A
418
418
418
418
418
BPM Pin Pad
8982
7550
8788
8797
8969
O-Ring
B
8987
10737
7884
8972
10110
Soc. Hd. Set Screw
C
3889
2889
2889
3018
3018
Retaining Ring
D
3473
3473
3473
10873
10873
O-Ring
E
10412
10412
10412
6490
6490
Piston Nut
F
-
-
-
10785
10785
Quadring
G
8335
8700
10109
9878
10110
Upper Piston
H
8983
7685
8789
8793
8970
Cylinder Weldment
I
8981
7549
7687
8798
8968
O-Ring
J
6161
6161
6161
6162
6162
O-Ring
K
6156
6157
6158
10086
6159
Cylinder Seperator Plate
L
8984
7748
8790
8795
8971
Lock Plate
M
8985
7686
8791
8796
8974
Soc. Hd. Cap Screw
N
7879
11455
11455
11456
11456
U-Packing
O
7882
7882
7882
8973
8973
Piston Rod
P
12427
12357
12357
12415
12446
Lubrication Tube
Q
12366
12366
12366
12416
12445
Lubrication Set
R
1134
1134
1134
1134
1134
Lower Piston
S
12405
12384
12361
12414
12448
Dowel, Anti-Rotation
T
12576
12576
12576
12576
12576
O-Ring
U
2723
2723
2723
6146
6146
Anti-Rotation Collar
V
12912
12362
12362
12417
12417
Soc. Hd. Cap Screw
W
3058
3058
3058
3058
3058
Quadring
X
8698
8698
8698
12027
12027
Adjustment Nut
Y
12365
12365
12365
12418
12418
Lock Plate
Z
12364
12364
12364
12419
12419
Plug
AA
12911
12911
12911
12911
12911
Soc. Hd. Cap Screw
BB
3391
3391
3391
3391
3391
Soc. Hd. Cap Screw
CC
1291
1291
1291
1291
1291
Support Plate
DD
12473
12386
12367
12420
12447

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model MD Part List PDF file
