 Die Cushion Parts Lists

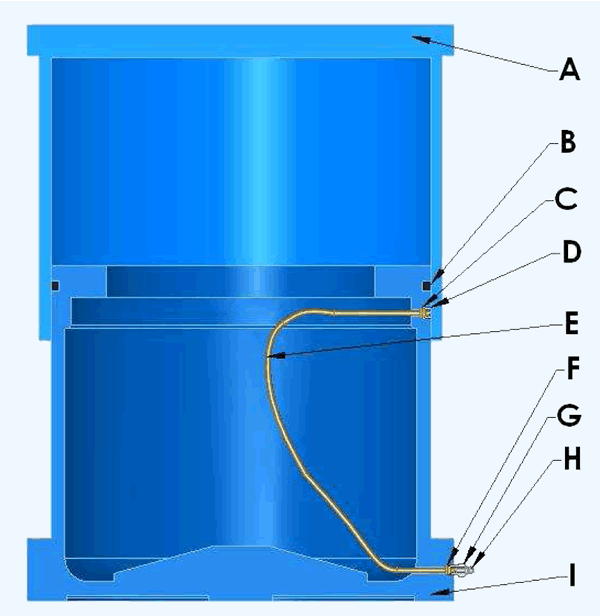

  >>Parts >>Parts Lists >>Model C Parts List
Description
Cushion Diameter and Part Number
6"
8"
10"
12"
14"
16"
18"
20"
22"
24"
Cushion Cylinder
A
7429
4231
4170
4141
4142
4143
5681
5682
4146
5683
Quad Ring
B
8312
8335
8700
10109
9878
10110
10687
10688
15393
15394
Compression Sleeve
C
867
867
867
867
867
867
867
867
867
867
Grease Screw
D
868
868
868
868
868
868
868
868
868
868
Copper Tubing
E
629
629
629
629
629
629
629
629
629
629
Compression Sleeve
F
867
867
867
867
867
867
867
867
867
867
Compression Fitting
G
870
870
870
870
870
870
870
80
870
870
Grease Fitting
H
625
625
625
625
625
625
625
625
625
625
Cushion Piston
I
222
318
306
311
309
556
649
969
1103
797

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model C Part List PDF file
