 Die Cushion Parts Lists
  >>Parts >>Parts Lists >>Model HC Parts List
Description

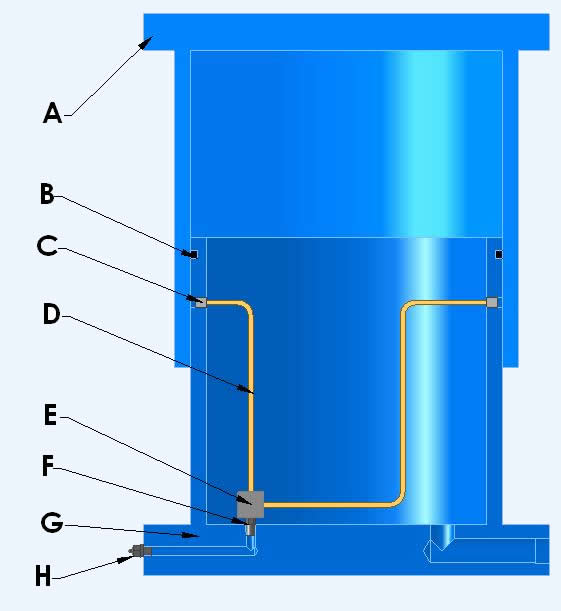

Cushion Diameter and Part Number
8"
10"
12"
14"
16"
18"
20"
22"
24"
Cushion Cylinder
A
6629
6671
6622
6595
6323
6281
6509
6506
6289
Quad Ring
B
8335
8700
10109
9878
10110
10687
10688
10689
10690
Grease Fitting
C
15392
15392
15392
15392
15392
15392
15392
15392
15392
Flex. Hose
D
10140
10140
10140
10140
10140
10140
10140
10140
10140
Pipe Tee
-
10965
10965
10965
-
-
-
-
-
-
Lub. Distributor
E
-
-
-
6620
6620
6620
6620
6620
6620
Hex Nipple
F
14498
14498
14498
14498
14498
14498
14498
14498
14498
Cushion Piston
G
6630
6672
6623
6596
6324
6282
6581
6507
6290
Lubrication Fitting
H
210
210
210
210
210
210
210
210
210

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model HC Part List PDF file
