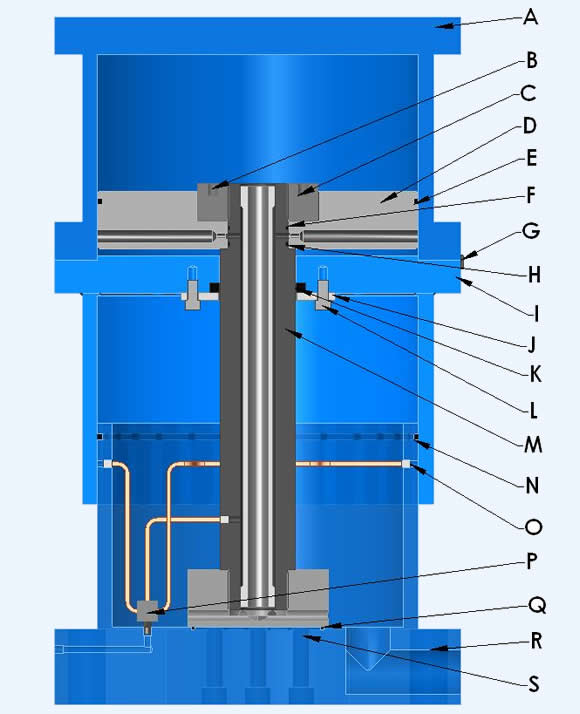

 Die Cushion Parts Lists
  >>Parts >>Parts Lists >>Model HMC Parts List
Description
Cushion Diameter and Part Number
8"
10"
12"
14"
16"
18"
20"
22"
24"
Cushion Cylinder
A
12802
12428
12487
12516
12399
12886
12890
12894
12898
Soc. Hd. Set Screw
B
1307
1307
1307
1463
1463
1463
1463
1463
1463
Piston Nut
C
-
-
-
12388
12388
13066
13066
13070
13070
Upper Piston
D
12801
12429
12489
12521
13060
11737
12890
13069
13075
Quadring
E
8335
8700
10109
9878
10110
10687
10688
10689
10690
O-Ring
F
6161
6161
6161
6162
6162
6068
6068
11256
11256
Vent Cover
G
10384
10384
10384
10384
10384
10384
10384
10384
10384
O-Ring
H
6161
6161
6161
6162
6162
6068
6068
11256
11256
Cylinder Weldment
I
12803
12430
12488
12518
12397
12887
12891
12895
12899
Lock Plate
J
13052
13052
13052
12401
12401
11735
11735
13071
13071
Soc. Hd. Cap Screw
K
 7879
7879
7879
10951
10951
  7886
 7886
 7886
 7886
U-Packing
L
 7882
7882
8973
8973
8973
11737
11737
13068
13068
Piston Rod Assembly
M
 12805
12805
12805
12387
12837
13064
13064
13073
13073
Quadring
N
 8335
8700
10109
9878
10110
10687
10688
10689
10690
Grease Hose
O
 10140
 10140
 10140
 10140
 10140
 10140
 10140
 10140
 10140
Lubr/ Distr. Block
P
 -
-
-
6620
6620
6620
6620
6620
6620
O-Ring
Q
 6068
6068
6068
12016
12016
11676
11676
13546
13546
Lower Piston
R
 12804
12433
12485
12514
12389
12888
12892
12896
12990
Soc. Hd. Cap Screw
S
 6656
6656
6656
 8607
 8607
 1276
 1276
 8204
 8204

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model HMC Part List PDF file
