 Die Cushion Parts Lists
  >>Parts >>Parts Lists >>Model HD Parts List

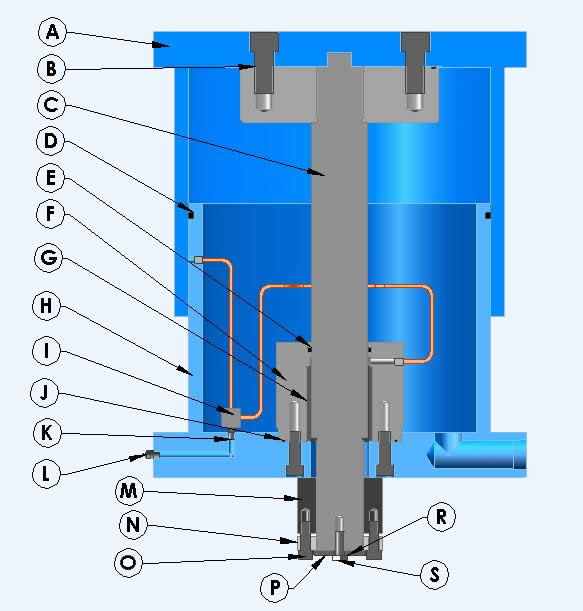

Description
Cushion Diameter and Part Number
8"
10"
12"
14"
16"
Cushion Cylinder
A
8542
8598
8619
8442
8625
Soc. Hd. Cap Screw
B
7932
2615
3324
1489
1463
Cylinder Rod
C
7146
7206
6895
6895
7164
Quad Ring
D
8335
8700
10109
9878
10110
Quad Ring
E
8311
8311
9893
9893
9893
Bearing Block
F
8602
8602
8446
8446
8446
Bushing
G
946
946
6955
6955
6955
Piston
H
8545
8601
8622
8445
8628
Lubrication Distributor
I
6620
6620
6620
6620
6620
O-Ring
J
6068
6068
3640
3640
3640
Hex Nipple
K
14498
14498
14498
14498
14498
Lubrication Fitting
L
210
210
210
210
210
Adjustment Nut
M
7007
7007
6897
6897
6897
Lock Plate
N
7008
7008
6898
6898
6898
Soc. Hd. Cap Screw
O
774
774
7349
7349
7349
Limit Plate
P
6402
6402
6953
6953
6953
Lock Washer
R
7235
7235
7235
7235
7235
Hex Hd. Cap Screw
S
6394
6394
6394
6394
6394

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model HD Part List PDF file
