 Die Cushion Parts Lists
  >>Parts >>Parts Lists >>Model MC Parts List

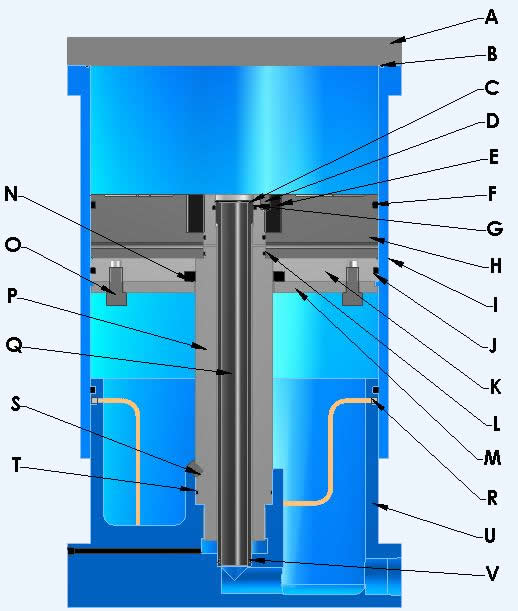

Description
Cushion Diameter and Part Number
8"
10"
12"
14"
16"
18"
20"
22"
24"
PBM Pin Pad
A
418
418
418
418
418
-
-
-
-
BPM Pin Pad
8982
7550
8788
8797
8969
-
-
-
-
O-Ring
B
8987
10737
7884
8972
10110
-
-
-
-
Retaining Ring
C
6074
6074
6074
10873
10873
10873
-
-
-
Soc. Hd. Set Screw
D
6223
6223
6223
3018
3018
3018
3018
3018
3018
Piston Nut
E
-
-
-
10785
10785
10785
11734
11734
11734
Quadring
F
8335
8700
10109
9878
10110
10687
10688
10689
10690
O-Ring
G
10412
10412
10412
6490
6490
6490
-
-
-
Upper Piston
H
8983
7685
8789
8793
8970
11617
11739
11723
11754
Cylinder Weldment
I
8981
7549
7687
8798
8968
-
-
-
-
O-Ring
J
6153
6157
6158
10086
6159
-
-
-
-
Cylinder Seperator Plate
K
 8984
7748
 8790
8795
 8971
-
-
-
O-Ring
L
6161
6161
6161
6162
6162
6162
6068
6068
6068
Lock Plate
M
8985
7686
8791
8796
8974
11618
11735
11735
11735
U-Packing
N
7882
7882
7882
8973
8973
8973
11737
11737
11737
Soc. Hd. Cap Screw
O
7879
11455
11455
11456
11456
11455
11455
6394
6394
Piston Rod
P
7511
7511
7511
8794
8978
11620
11728
11728
11728
Lubrication Tube
Q
7677
7677
7677
8799
8799
11619
-
-
-
Lubrication Set
R
1134
1134
1134
1134
1134
1134
1134
1134
1134
Soc. Hd. Set Screw
S
2002
2002
2002
6223
6223
7498
-
-
-
O-Ring
T
6161
6161
6161
7419
7419
7419
3639
3693
3693
Lower Piston
U
8986
7304
7693
8792
8977
11611
11738
11729
11750
O-Ring
V
8892
8892
9345
9345
9345
-
-
-
-

Important Information:

This part list refers to new style seals, Quad-Rings, if looking for parts for older die cushions, please refer to PDF file below for seal part numbers.

Download Model MC Part List PDF file
